QH
Function Preview
FAST COOLING & HEATING
Compressor starts at high frequency, quickly improving cooling/heating efficiency.
ECO ENERGY SAVING
Adjusting frequency according to the temperature difference at cooling mode, saving power and energy.
AUTO-RESTART
In the event of power outage, the system automaticallyrestarts at the same settings when powered back on.
HIGH AIRFLOW
Long-Distance Air Supply, Sufficient Cold Air. Our air conditioners offer superior airflow volume, providing greater comfort.
COOLING COMFORT HELPS YOU ENJOY
A COMFORTABLE AND PEACEFUL LIFE
A COMFORTABLE AND PEACEFUL LIFE
Watch Video
Watch Video
At the heart lies innovative inverter
technology that intelligently modulates
energy output, striking the perfect
balance between peak efficiency and
unwavering reliability.
technology that intelligently modulates
energy output, striking the perfect
balance between peak efficiency and
unwavering reliability.
At the heart lies innovative
inverter technology that
intelligently modulates
energy output, striking the
perfect balance between
peak efficiency and
unwavering reliability.
inverter technology that
intelligently modulates
energy output, striking the
perfect balance between
peak efficiency and
unwavering reliability.
Explore the features of QH
Rapid Cooling & Heating
High-frequency compressor starts instantly, improving efficiency for faster temperature adjustment
Energy-Saving Mode
Auto-adjusts compressor frequency based on real-time temperature differences to save energy
Hurricane-Grade
Air Circulation
Air Circulation
Powerful airflow delivers consistent cooling/heating to every corner of the room
Full-scenario IoT Control
Middle East: Stable cooling at 65℃
Europe: Reliable heating at -25℃
Europe: Reliable heating at -25℃
SMART CONTROL
Remotely control your AC via smartphone app with Wi-Fi connectivity
Third party sevice of Google Home and Alexa is
available(download from appstore)
available(download from appstore)
Silver Ion Antibacterial Filter
Detachable design for easy cleaning, effectively inhibits bacteria and fungi growth
Appearance

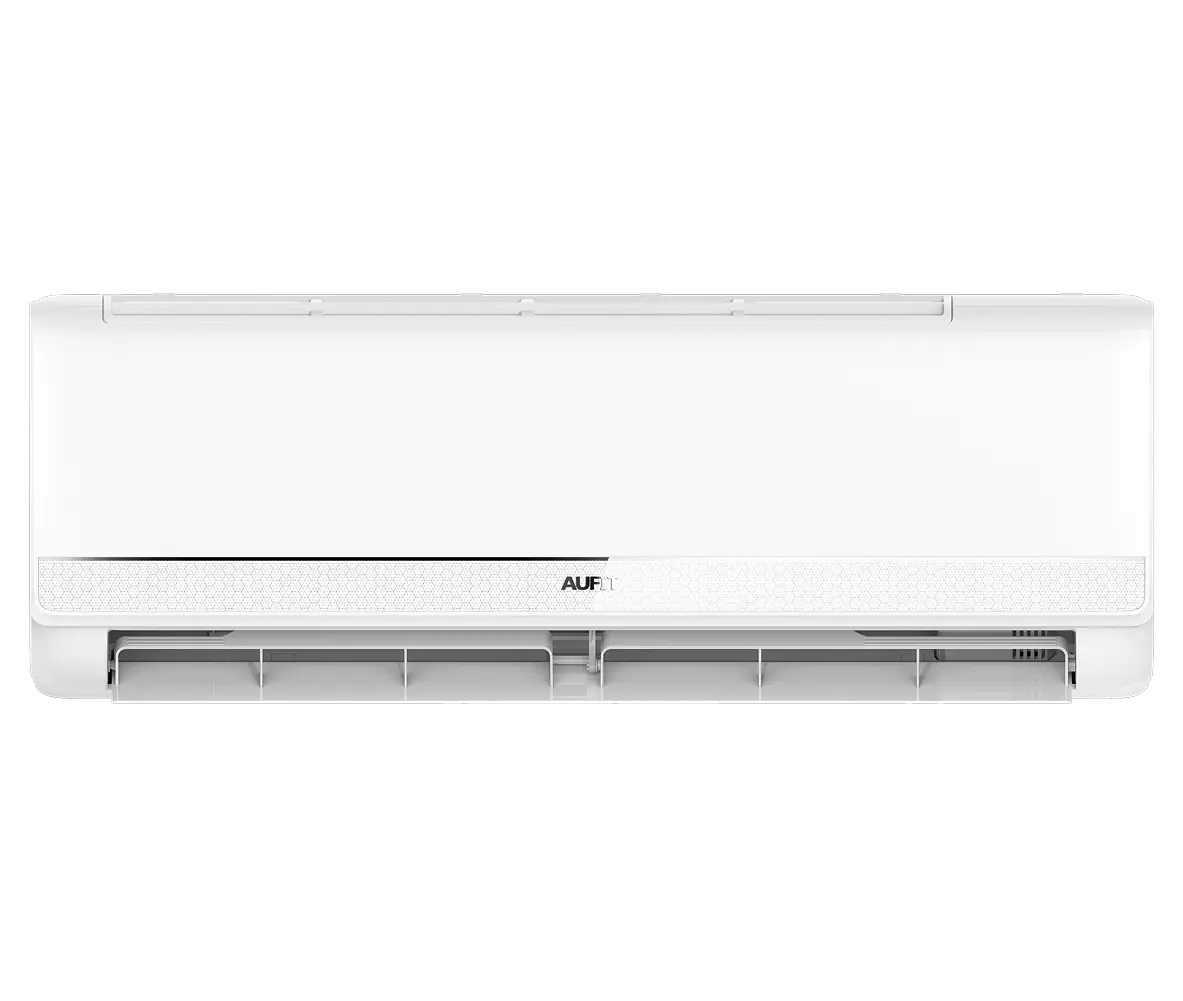

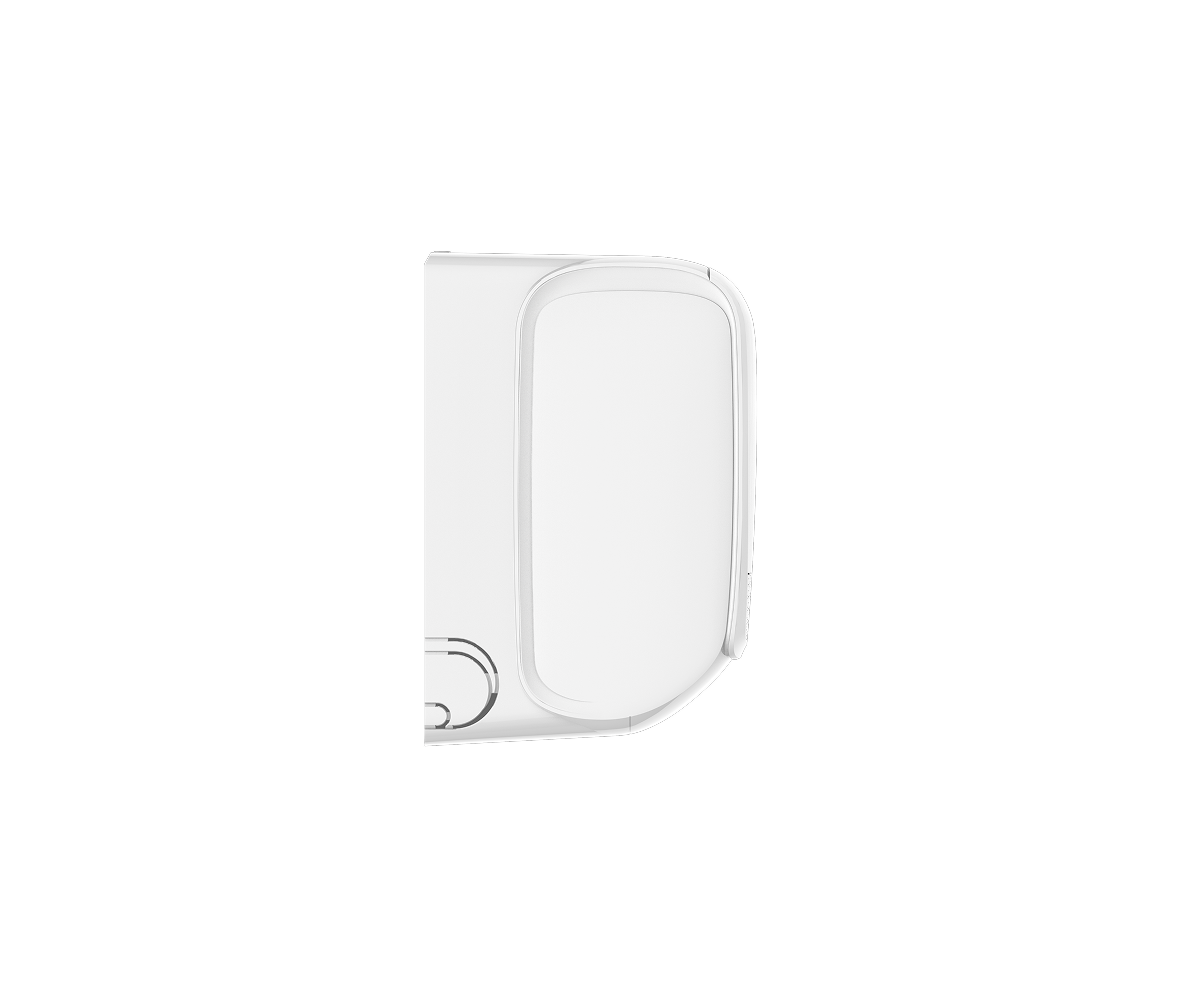

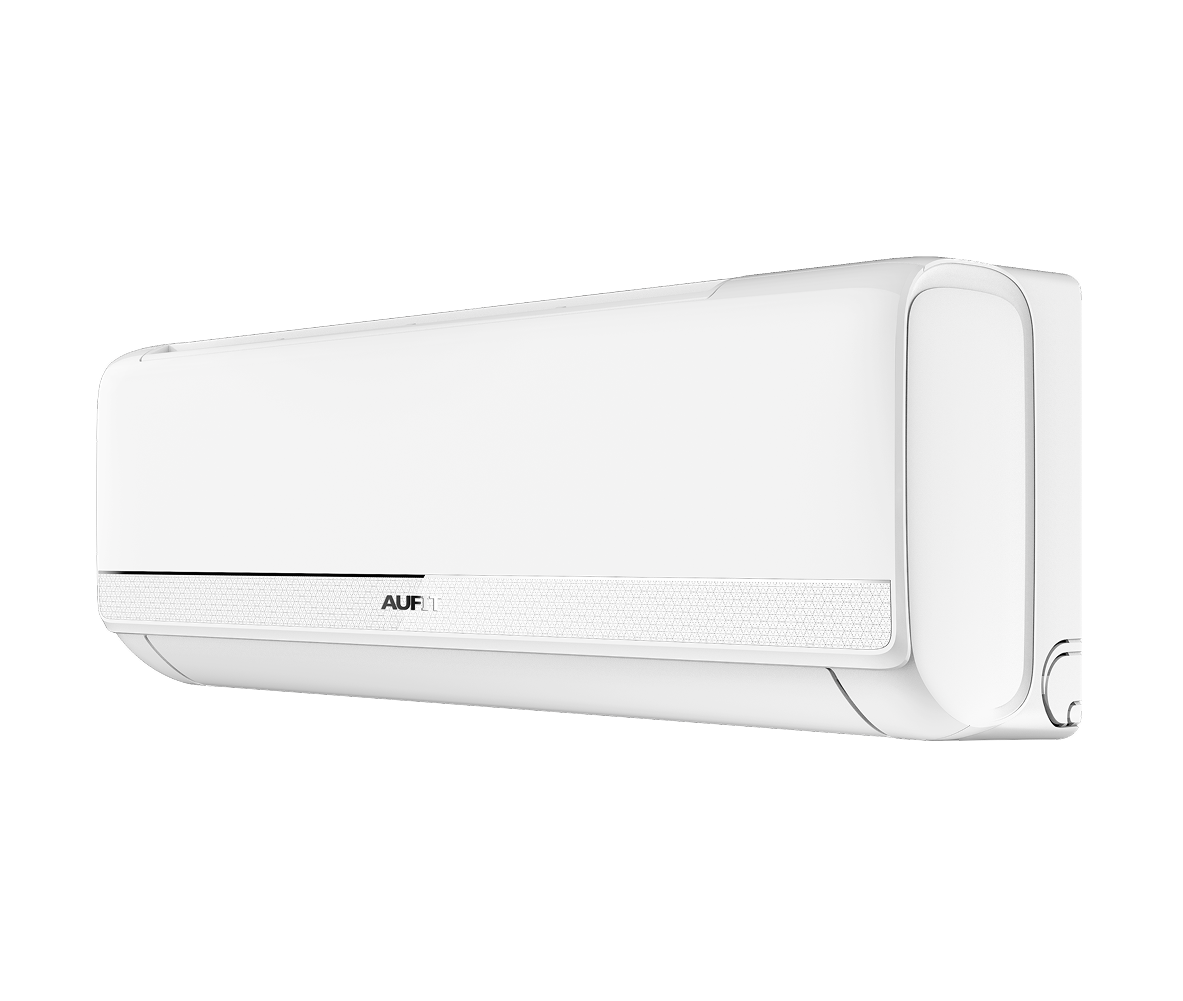

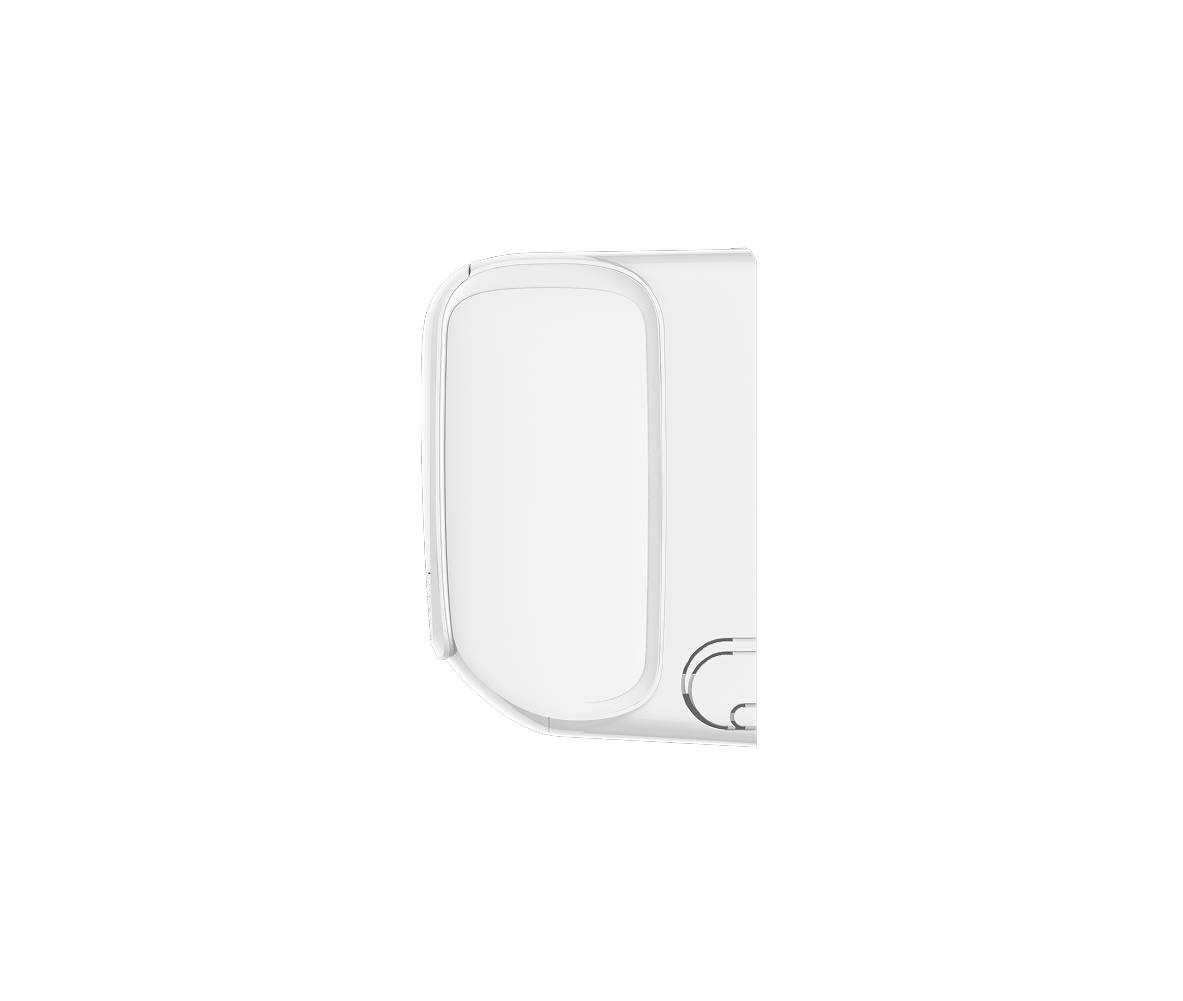

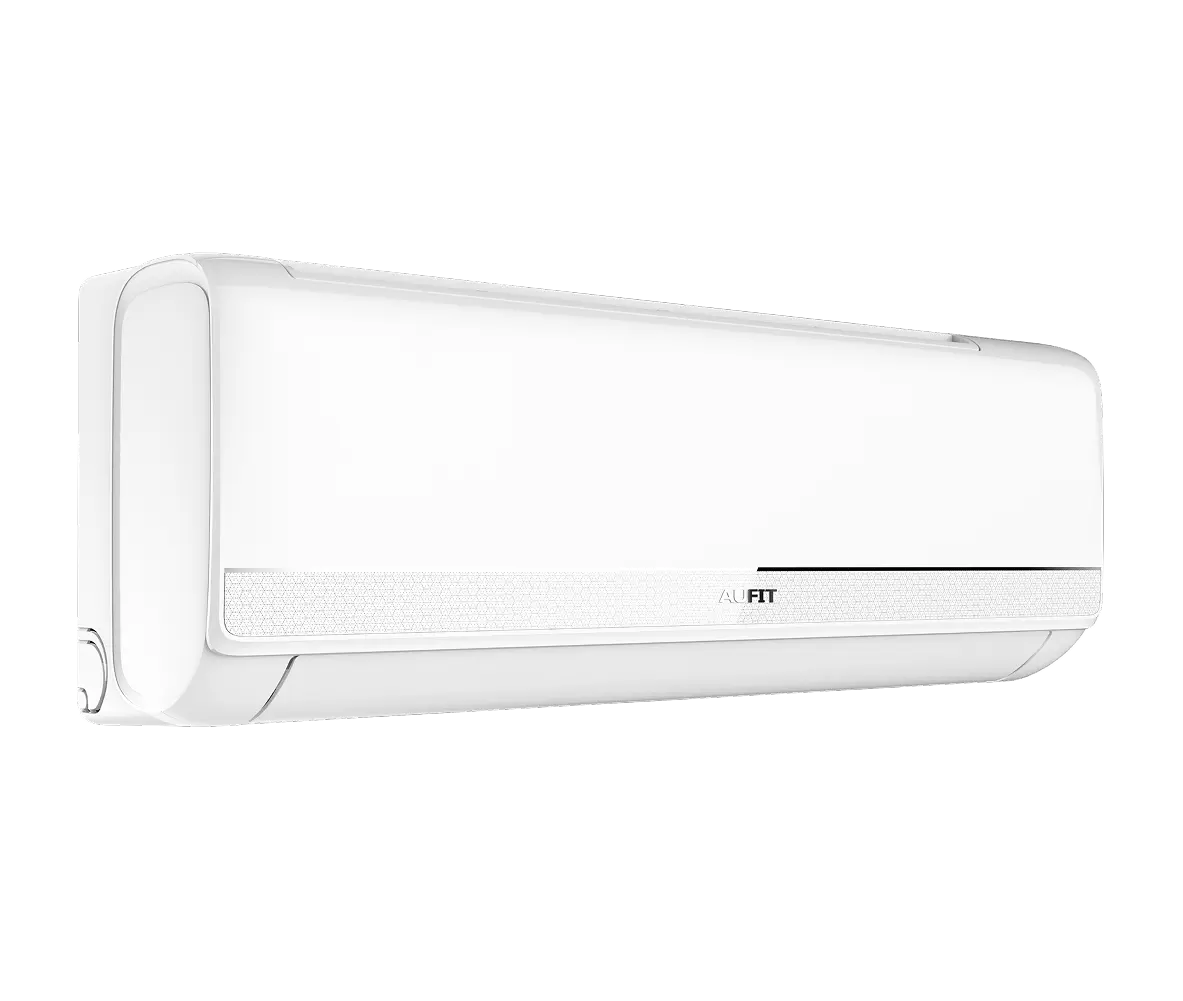

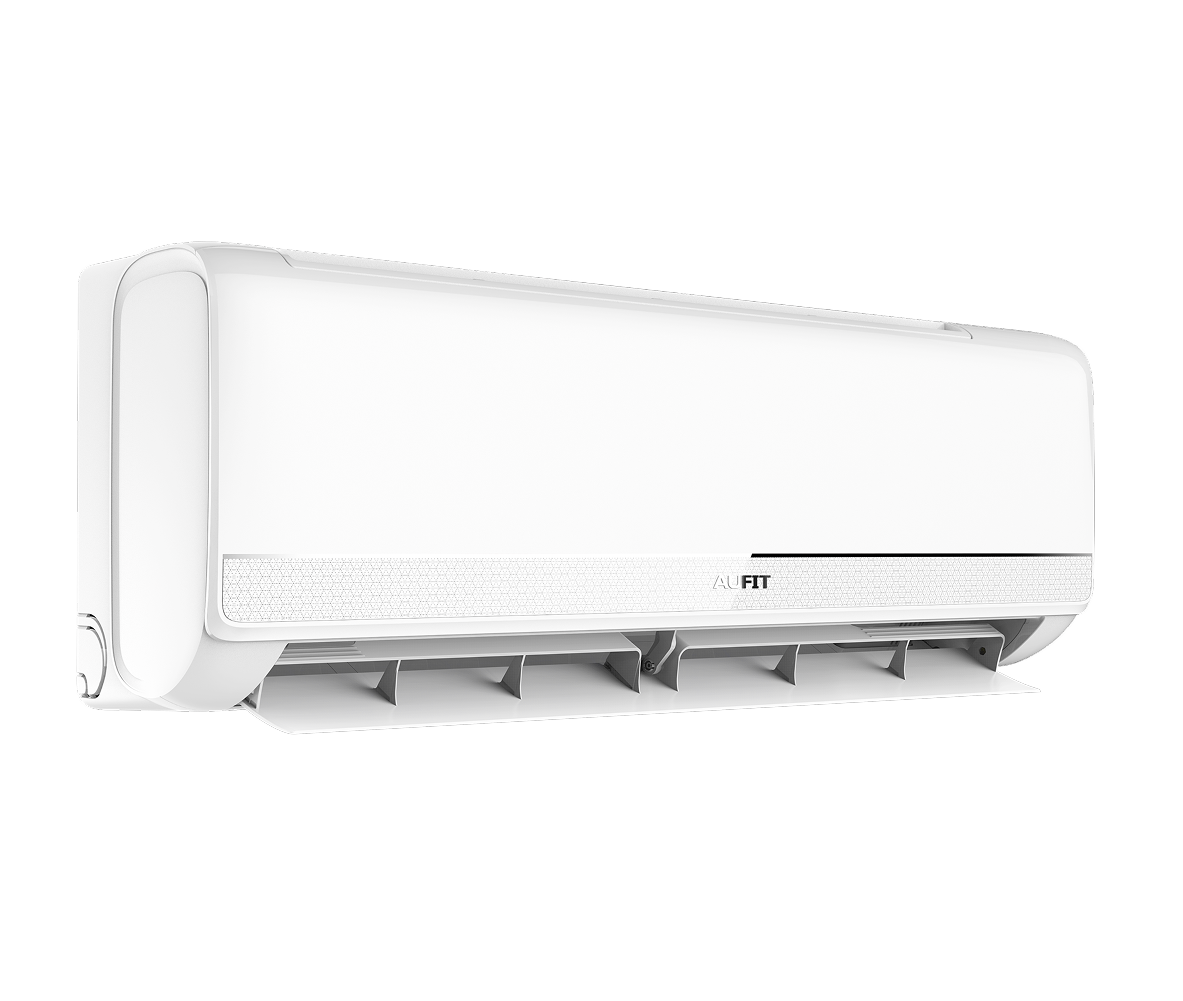

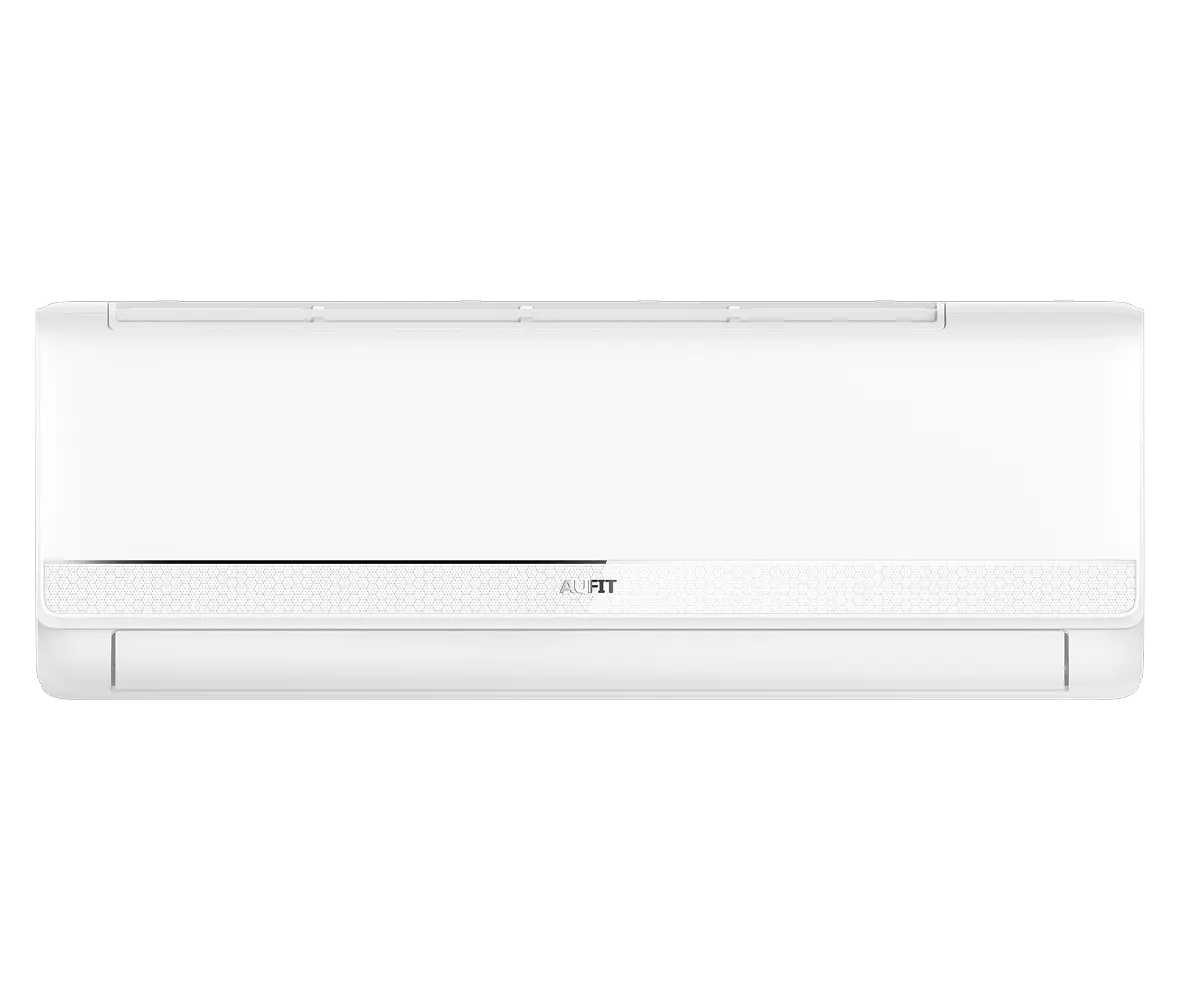

Indoor Unit
Outdoor Unit
Remote Control
3D Structural Diagram
Specification
- 测试
- rohs
- cb
- ce
| Model No | A+++/A++ | 09K | 12K | 18K | 24K | |
|---|---|---|---|---|---|---|
| Cooling Capacity | Btu/h | 9212 | 11942 | 18015 | 20813 | |
| W | 2700 | 3500 | 5280 | 6100 | ||
| Electric Data | Cooling Power Input | W | 720 | 870 | 1430 | 1500 |
| Cooling Current | A | 3.4 | 4.2 | 6.4 | 7.0 | |
| Heating Capacity | Btu/h | 11260 | 14330 | 19107 | 18424.0 | |
| W | 3300 | 4200 | 5600 | 5400.0 | ||
| Heating Capacity | Minimum | Btu/h | 3173 | 3173 | 4435 | 6141 |
| Maximum | Btu/h | 14330 | 14330 | 20813 | 23884 | |
| Heating Capacity | Heating Power Input | W | 760 | 1060 | 1330 | 1800 |
| Heating Current | A | 3.6 | 4.8 | 6.1 | 10.0 | |
1.All specifications are subject to change by the manufacturer without prior notice.
2.All units are being tested and comply to EN 14825:2018.
3.Sound pressure levels are measured in anechoic chamber. During actual operation, sound pressure level will be higher as a result of room specification condition.
4.Data from AUX lab, Data may vary based on conditions; AUX reserves the right to update.
2.All units are being tested and comply to EN 14825:2018.
3.Sound pressure levels are measured in anechoic chamber. During actual operation, sound pressure level will be higher as a result of room specification condition.
4.Data from AUX lab, Data may vary based on conditions; AUX reserves the right to update.
